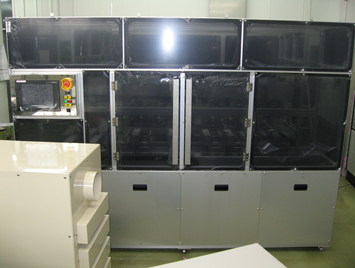

This is the machine that is equipped with UV irradiation machine to harden the lubricant for producing the magnetic media and the system to supply and discharge the magnetic media to and from the UV irradiation machine.
Standard Specification
| Subjected Board | 3.5inch, 2.5inch, 1.89inch of Glass and Aluminum |
| Throghtput | 1,600PPH (UV irradiation time at 14.8 sec.) Conveyor transport velocity : 131.9mm/s (by using large rollers) 105.6mm/s (by using small roller) |
| Utility | Power source : AC200V 17KVA (Three phase), Pressure : Connection φ10 approx. 50NL/min 0.5Mpa N2: Connection φ12, Plant extractor: φ123. (680L/min and over) Coolant consumption : 50L/min. |
| Machine Size | ...W2,500xL2,160xH2,600, Machine Weight ...Approx.800kg |
| Air cleanliness | Class100@0.1um |
| Targetted Business | Hard Disk |
| Applications | UV Curing Surface-reforming |
